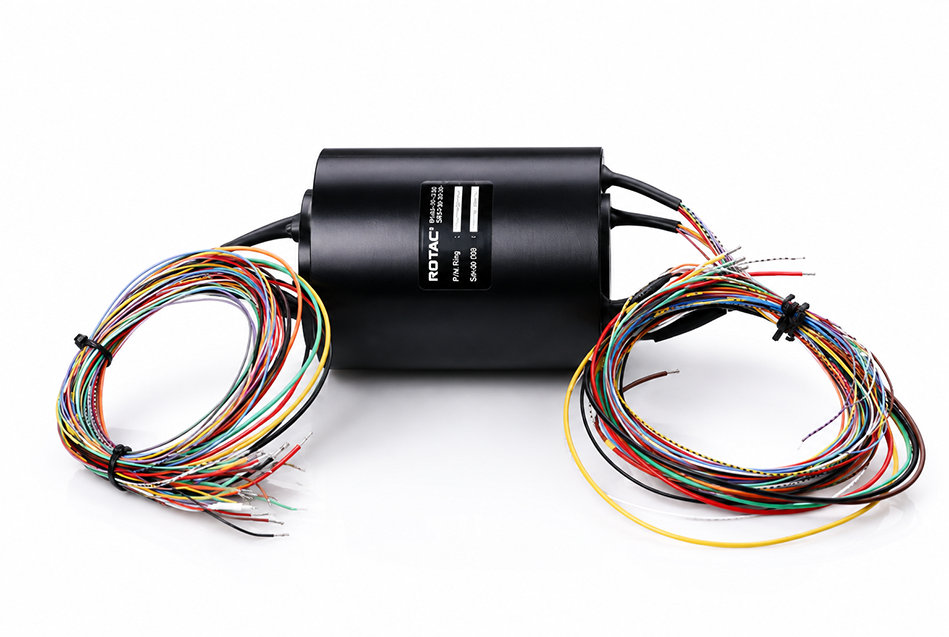

SRB50 Series
Bore Mounting Slip Ring Assemblies
Specification | |
Size | OD : 110 / ID : 50 / L1 : 50 - 125 / L2 : 60 - 135 |
No. of Ch. | 6 ~ 48 |
Power | AC 300 V (Power), AC 150 V (Signal) |
Signal | 10 A (Power), 5 A (Signal) per Circuit |
Rotating speed | Max. 250 rpm (Intermittent) |
Mounting | Bore Mounting |
Lead Wire Size | Power: 16 AWG / Signal: 24 AWG |
Lead Wire Type | Tin-Plated Copper, PTFE (Teflon) Insulated |
Housing Material | Aluminum Alloy, Black Anodized |
Upper/ Lower Cover | PBT |
Operating Temperature | −40 °C to +80 °C (−40 °F to +176 °F) |
Warranty | 10 Million Revolutions or 1 Year (Whichever Occurs First) |
Application | Index table, FA, Robotics, semiconductor line, cable reels, etc. |
Advantage | Modular design, No lubrication required |
| Module Configuration | |||||
| Module | Model | Power Circuits | Signal Circuits | ||
| Wire 10A | AWG 16 | Wire 5A | AWG 24 | ||
| 1M | 6P | 6 | - | ||
| 12S | - | 12 | |||
| 2M | 12P | 12 | - | ||
| 6P 12S | 6 | 12 | |||
| 24S | - | 24 | |||
| 3M | 18P | 18 | - | ||
| 12P 12S | 12 | 12 | |||
| 6P 24S | 6 | 24 | |||
| 36S | - | 36 | |||
| 4M | 24P | 24 | - | ||
| 18P 12S | 18 | 12 | |||
| 12P 24S | 12 | 24 | |||
| 6P 36S | 6 | 36 | |||
| 48S | - | 48 | |||

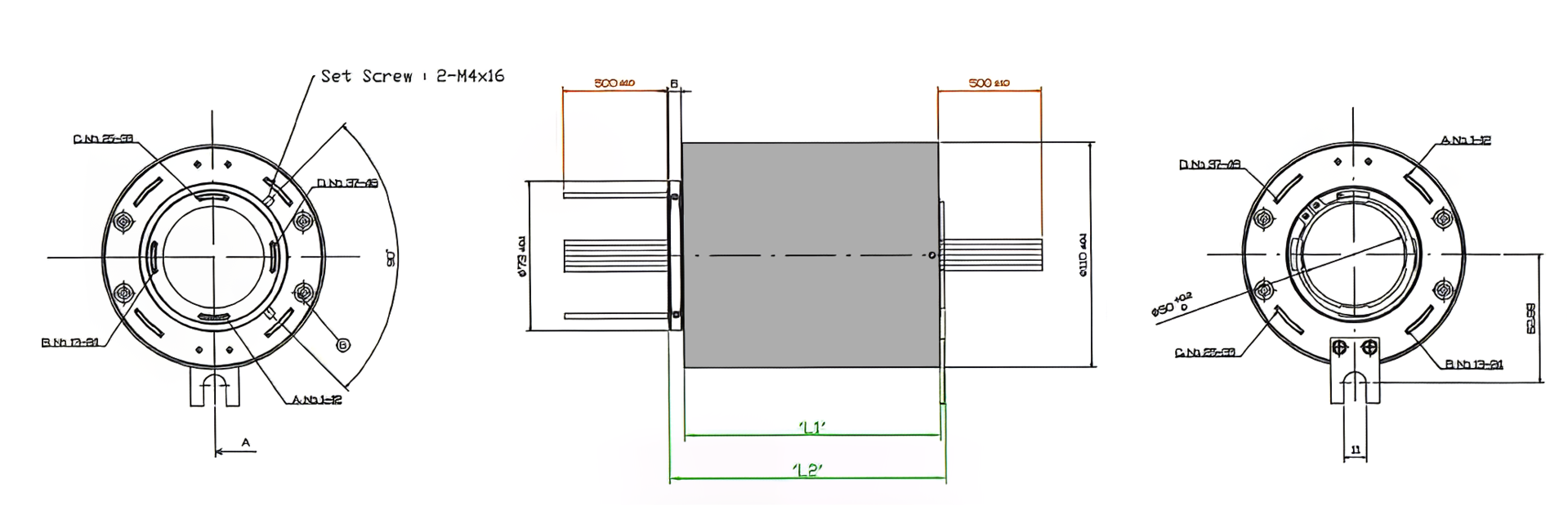

[Dimensions]
Part Number | Length "L" (mm) | Circuit Configuration | |
"L1" | "L2" | ||
SRB50-1M | 50 | 60 | 6P, 12S |
SRB50-2M | 75 | 85 | 12P, 6P 12S, 24S |
SRB50-3M | 100 | 110 | 18P, 12P 12S, 6P 24S, 36S |
SRB50-4M | 125 | 135 | 24P, 18P 12S, 12P 24S, 6P 36S, 48S |
